Lub thoob saw dredger av adaptability muaj zog, tuaj yeem khawb txhua yam av tshwj tsis yog pob zeb, thiab tseem muaj txiaj ntsig zoo dua li lwm hom dredgers hauv kev khawb pob zeb tawg tom qab blasting. Lub hauv qab ntawm cov dej yog tiaj tus tom qab dredging, yog li nws yog haum rau qhov project nrog nruj specification yuav tsum tau.

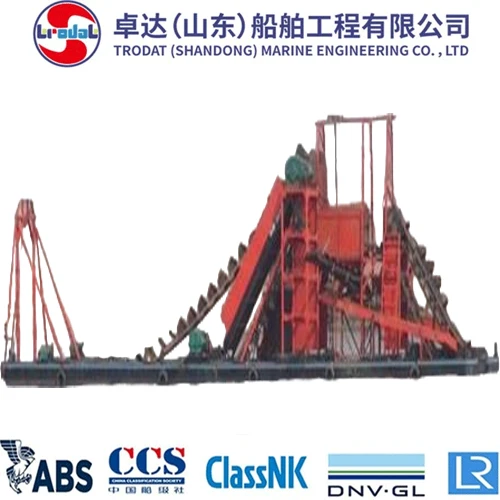

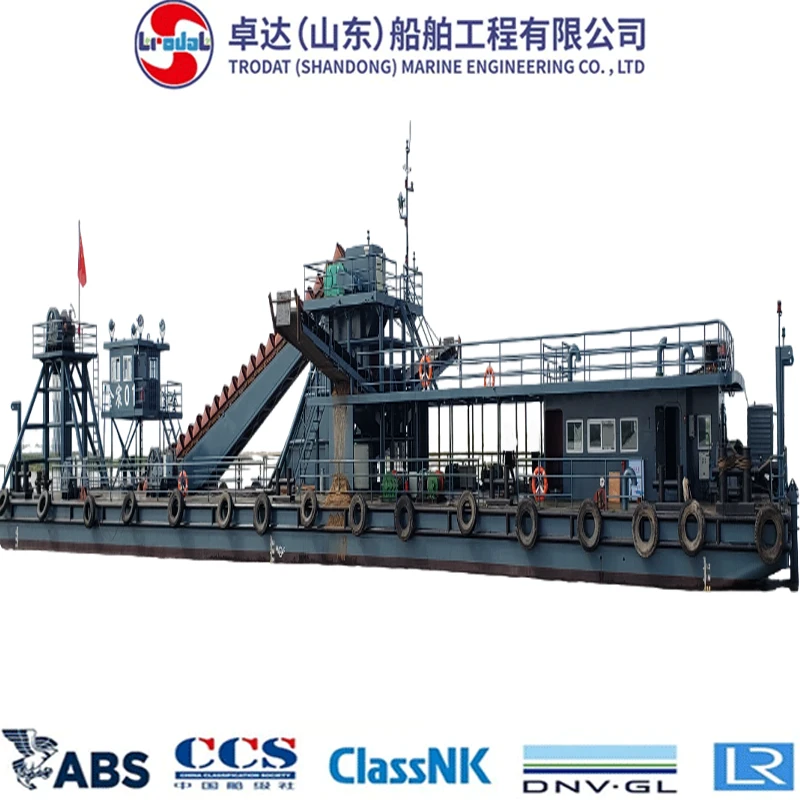

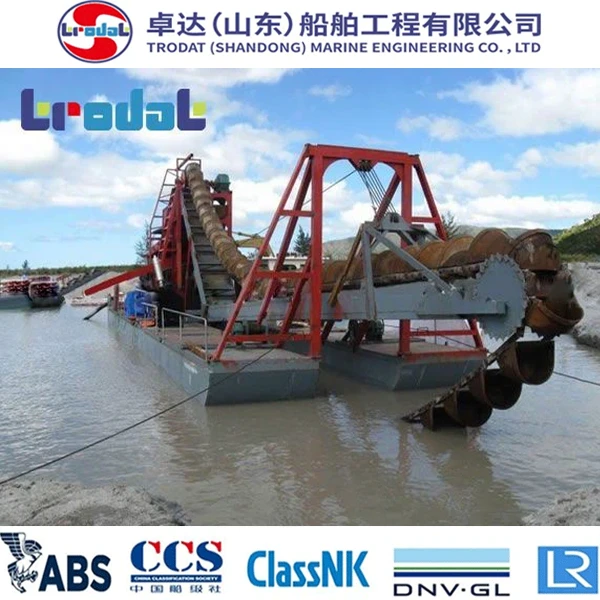

Lub thoob saw dredger feem ntau yog siv lub nkoj-hom hull, siv cov thoob thoob nrog cov thoob khib nyiab, uas tau tsav los ntawm cov lus qhia sab saud, kev sib hloov tsis tu ncua ntawm tus choj thoob, kom lub thoob hauv qab dej dredging thiab nqa mus rau saum npoo dej, nrog rau tib yam rau hauv txoj hlua khi hlua khi, kom lub nkoj lub nkoj mus rau pem hauv ntej lossis sab laug thiab sab xis viav vias los ua haujlwm dredging.

Bucket Chain Dredger TBD-B60

Qhov loj me (L × B × H)	20.0×4.5×1.0m
Main cav fais fab	75 kwv
Max.dredging qhov tob	8m
Max. peev	60m³/h
Chain thoob kom muaj nuj nqis	64 pcs
Chain thoob ceev	15.2m / min
Saw loj	600 × 100 × 30mm
Chain ntau	128 pcs

Bucket Chain Dredger TBD-B80

Qhov loj me (L × B × H)	22.0×5.0×1.0m
Main cav fais fab	88 kwv
Max.dredging qhov tob	8m
Max. peev	80m3/h
Chain thoob kom muaj nuj nqis	64 pcs
Chain thoob ceev	15.2m / min
Saw loj	600 × 100 × 30mm
Chain ntau	128 pcs

Bucket Chain Dredger TBD-B100

Qhov loj me (L × B × H)	25.0×6.0×1.0m
Main cav fais fab	105 kwv
Max.dredging qhov tob	10m
Max. peev	100m²/h
Chain thoob kom muaj nuj nqis	64 pcs
Chain thoob ceev	15.2m / min
Saw loj	700 × 100 × 30mm
Chain ntau	128 pcs

Bucket Chain Dredger TBD-B120

Qhov loj me (L × B × H)	32.0×6.5×1.2m
Main cav fais fab	115 kwv
Max.dredging qhov tob	13m
Max. peev	120m²/h
Chain thoob kom muaj nuj nqis	64 pcs
Chain thoob ceev	18m / min
Saw loj	800 × 100 × 35mm
Chain ntau	128 pcs

Bucket Chain Dredger TBD-B150

Qhov loj me (L × B × H)	35.0×6.5×1.2m
Main cav fais fab	125 kwv
Max.dredging qhov tob	16m
Max. peev	150m²/h
Chain thoob kom muaj nuj nqis	64 pcs
Chain thoob ceev	18m / min
Saw loj	800 × 100 × 40mm
Chain ntau	128 pcs

Bucket Chain Dredger TBD-B200

Qhov loj me (L × B × H)	39.0×7.0×1.4m
Main cav fais fab	147 kwv
Max.dredging qhov tob	20m
Max. peev	200m²/h
Chain thoob kom muaj nuj nqis	8 8pcs
Chain thoob ceev	18m / min
Saw loj	800 x 120 x 40 mm
Chain ntau	176 pcs

Bucket Chain Dredger TBD-B300

Qhov loj me (L × B × H)	43.0×7.8×1.4m
Main cav fais fab	205 kwv
Max.dredging qhov tob	25m
Max. peev	300m²/h
Chain thoob kom muaj nuj nqis	8 8pcs
Chain thoob ceev	18m / min
Saw loj	1000 × 150 × 50mm
Chain ntau	176 pcs

Bucket Chain Dredger TBD-B400

Qhov loj me (L × B × H)	46.0×8.0×1.4m
Main cav fais fab	240 kwv
Max.dredging qhov tob	28m
Max. peev	400m²/h
Chain thoob kom muaj nuj nqis	8 8pcs
Chain thoob ceev	18m / min
Saw loj	1100 × 150 × 50mm
Chain ntau	176 pcs
